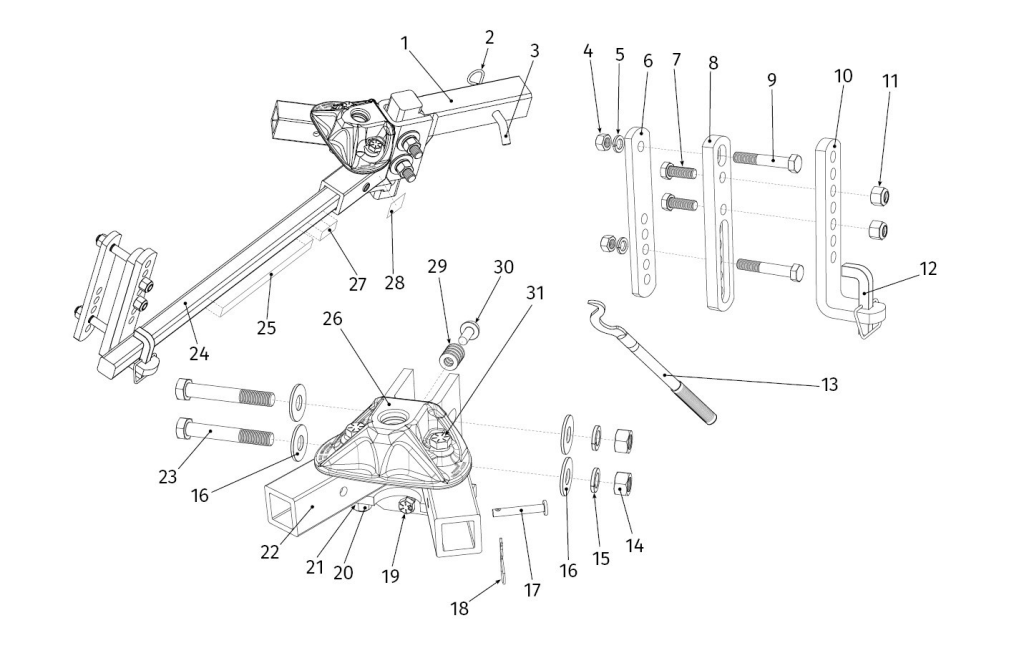

Parts Breakdown | Equal-i-zer Hitch

Item #	Part Number	Part Description	Quantity
1	90-02-4700	Adjustable Shank	1
2	90-04-9224	Hitch Pin Clip	1
3	90-03-9220	Hitch Pin	1
4	90-03-9425	5/8″ -11 Nut (grade 5)	4
5	90-03-9420	5/8″ split lock washer	4
6	90-02-5216	16K inside link plate	2
7	90-03-9655	5/8″ -11 X 1-3/4″ bolt (grade 5)	4
8	90-02-5316	16K outside link plate	2
9	90-03-9611	5/8″ -11 X 3-3/4″ bolt (grade 5)	4
10	90-02-5116	16K L-bracket	2
11	90-03-9633	1/2″ Nyloc Nut (grade 5)	4
12	90-03-9230	Snap L-Pin	2
13	95-01-6050	Snap-up lever (complete)	1
14	90-04-9126	3/4″ -10 nut (grade 8)	2
15	90-04-9120	3/4″ split lock washer	2
16	90-04-9115	3/4″ hardened flat washer zinc	4
17	90-03-9212	Socket pin	2
18	90-04-9216	Socket Pin Clip	2
19	90-03-9708	1/2″ -20 X 1-3/4″ angle set bolt (grade 8)	1
20	90-02-0600, 90-02-1000, 90-02-1200, 90-02-1400	5/8″ -11 nut (grade 8) blk. oxide	2
21	90-03-9510	5/8″ split lock washer blk. oxide	2
22	90-03-1600	16K socket	2
23	90-04-9131	3.4″ -10 X 5″ bolt (grade 8)	2
24	90-02-1699 *	16K spring arm	2
25	BD164	16K arm sticker	2
26	90-02-1600	16K hitch head	1
27	90-03-9105	New owner information sticker	2
28	BD035	Socket warning sticker	2
29	90-04-9110	1/2″ hardened flat spacer washer	8
30	90-03-9105	Spacer (pan) rivet	1
31	90-03-9508	5/8″ -11 X 4-1/2″ bolt (grade 8) blk. oxide	2

* Part number displayed is for single (1) individual piece.
